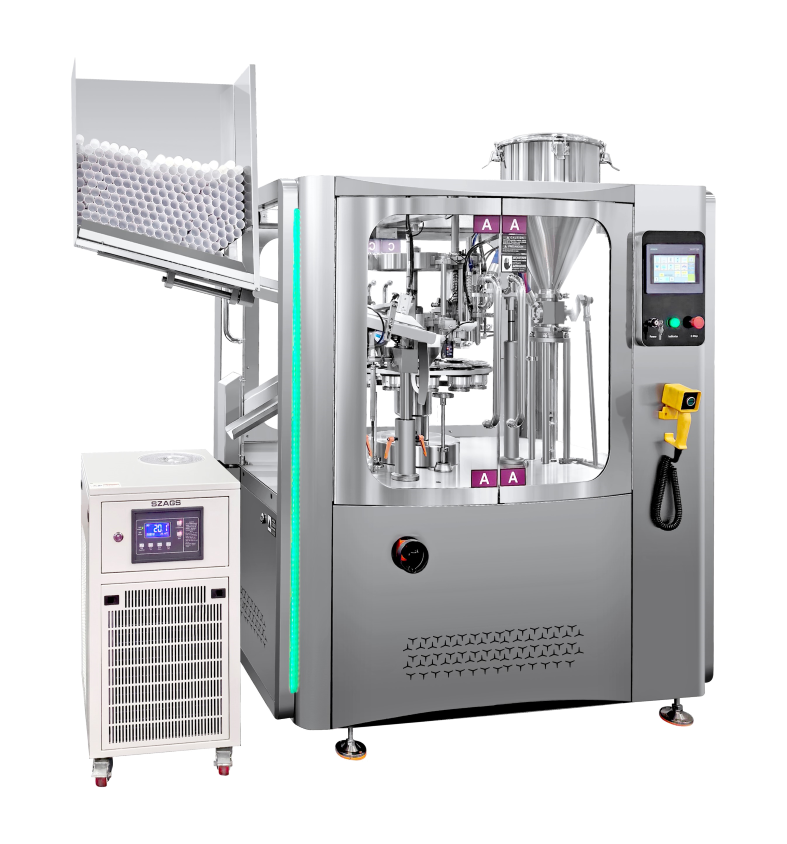

TFS-70D
Tube Filling and Sealing Machine
USA based Service Technicians, Spare Parts, and Tooling
Key Features
Speed
Output of up to 70 tubes per minute, 4,200 tubes per hour, 29,000 tubes per shift.
High Quality Components
Top quality electrical and pneumatic components from companies such as Siemens and SMC.
Built to Last
High quality 304SS construction. Product contacting wet parts made from 316 stainless steel.
Ease of Use
Capable of being run by a single operator. The touchscreen Siemens PLC is used to save filling and sealing parameters.
Accuracy
Rest assured knowing tubes are filled within
< ± 1% of the desired volume.
Professional Quality

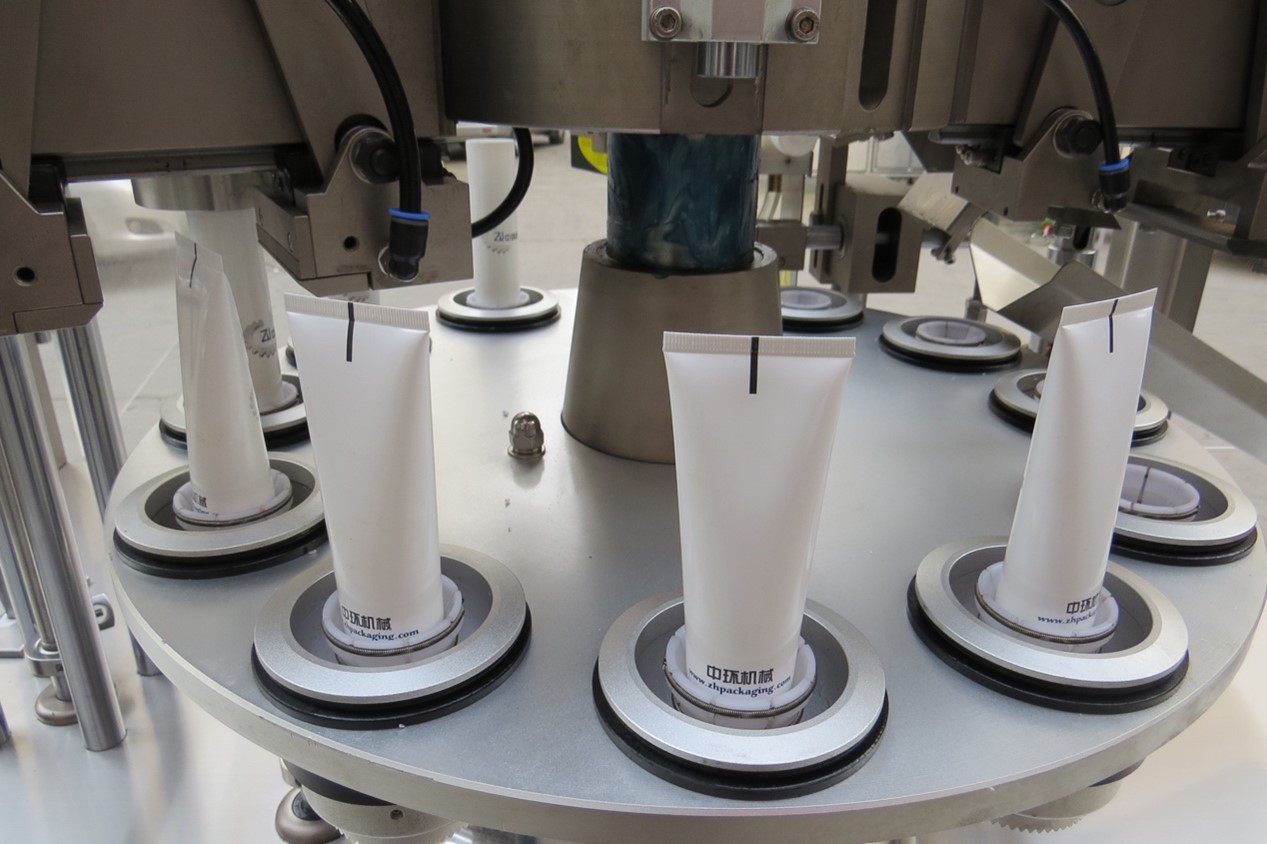

Hot air sealing technology with dual sided coding for excellent plastic and laminate tube seals.
Tube Filler Features:
- Speed: 70 Tubes Per Minute
- Sealing: Hot air with dual-sided code
- Siemens Touch Screen PLC
- Preset tube sealing settings
- Automatic Cassette Tube Feeding
- Automatic Tube Discharge
- Automatic Tube Orientation

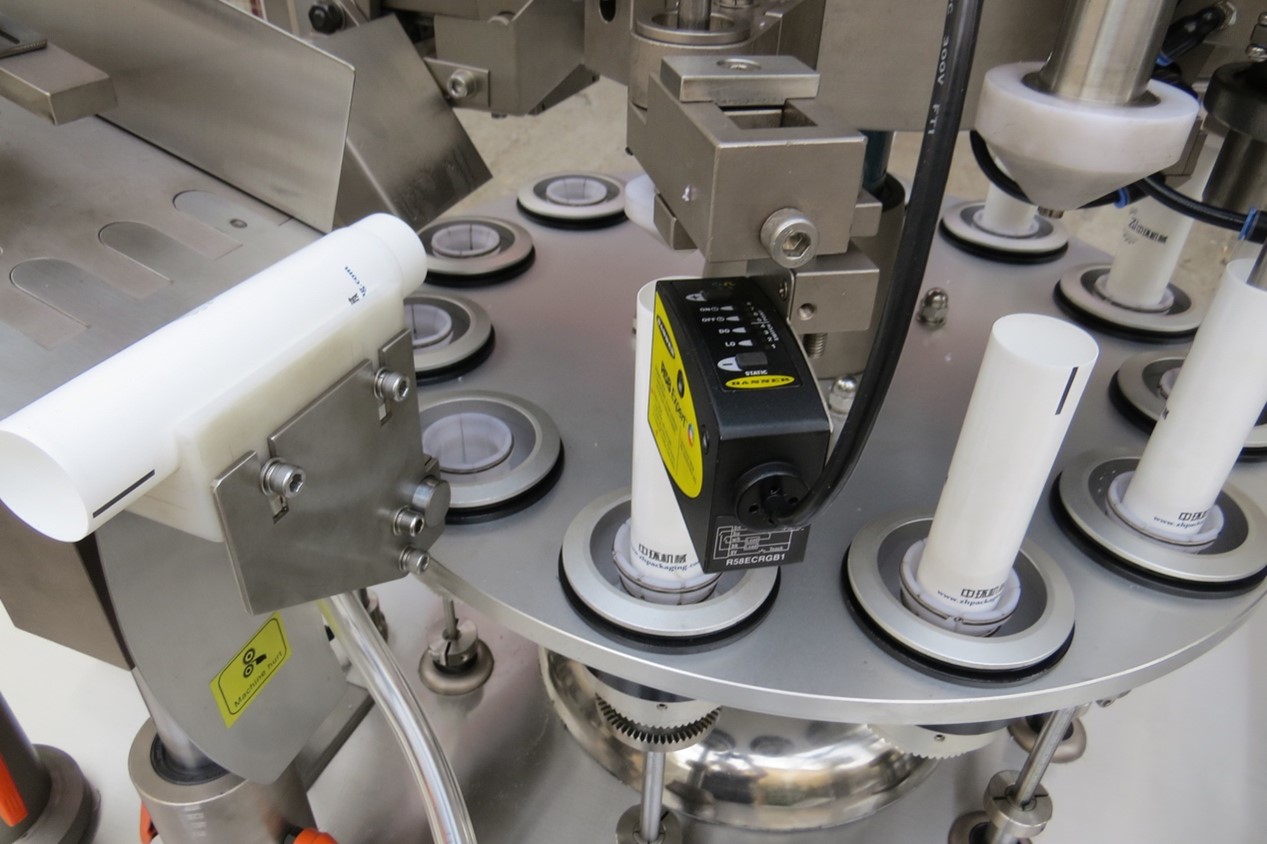

- 12 Station Rotary Indexing

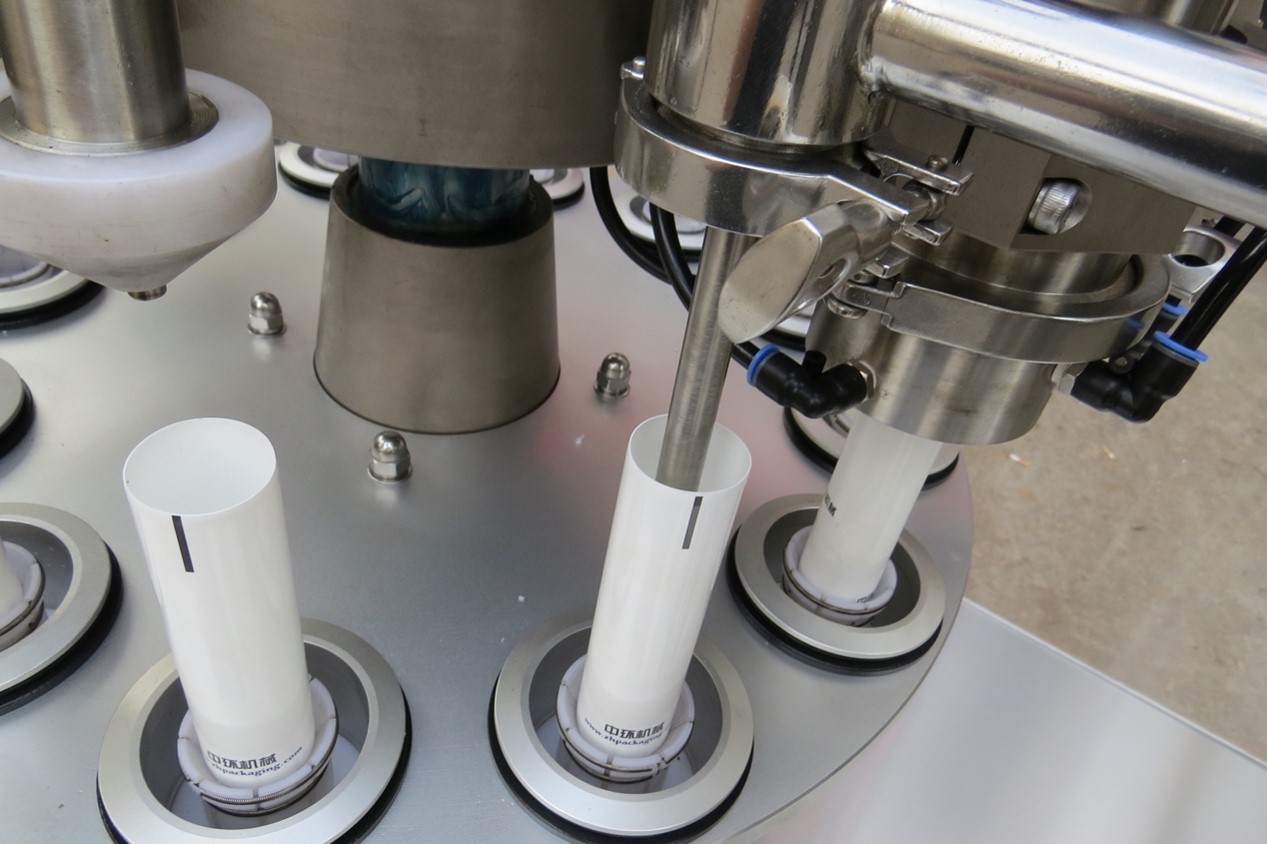

- Bottom-up Filling
- Filling Nozzle with cut-off and air blow
- No Tube No Fill safety
- Rapid Change Over, easy cleaning
- Rapid Delivery size parts tooling
- 316L Stainless Steel Contact Parts
Tube Filler Specifications:
- Tube Diameter: 10mm – 50mm
- Tube Length: 240mm (max tube O.A.L.)
- Filling Volume: 3 – 300ml
- Filling Accuracy: +/- 1%
- Hopper Volume: 40 Liter
- Main Motor 1.5 HP (1.1kw)
- Electrical: 220V, 3 Phase, 20A, 60Hz
- Electrical Requirements: 7kw
- Air Pressure: 58-87 PSI (0.4-0.6 Mpa)
- Chilled Water Temperature: (15-20°C)
- Dimensions: 89” wide x 38” deep x 83” tall
- Weight: 2,976 lbs (1,350 kgs)
Top Quality Components:
- PLC: Siemens (from Germany)
- Touch Screen LCD: Siemens (from Germany)
- Variable Frequency Drive: Siemens (from Germany)
- Orientation Sensor: Panasonic (from Japan)
- Power Switch: Schneider (from France)
- Air Pressure Control System: Omron (from Japan)
- Proximity Switch: Sick (from Germany)
- Emergency Stop: Schneider (from France)
- Power LED: Schneider (from France)
- Hot Air Generator: Leister (from Switzerland)
- Pneumatic Cylinders: SMC (from Japan)
- 316L Stainless Steel contact parts
