Tube Filling and Sealing Machine
USA based Service Technicians, Spare Parts, and Tooling
Key Features
Speed
Output of up to 60 tubes per minute, 3,600 tubes per hour, 25,000 tubes per shift.
Versatility
Changeover from plastic or laminate tube sealing to metal tube crimping on the same machine.
Built to Last
High quality 304SS construction. Product contacting wet parts made from 316 stainless steel.
Ease of Use
Capable of being run by a single operator. The touchscreen Mitsubishi PLC is used to save filling and sealing parameters.
Accuracy
Rest assured knowing tubes are filled within
< ± 1% of the desired volume.
Professional Quality
Saddle-fold capabilities with dual sided code for excellent seal quality.
Tube Filler Features:
- Speed: 60 Tubes Per Minute

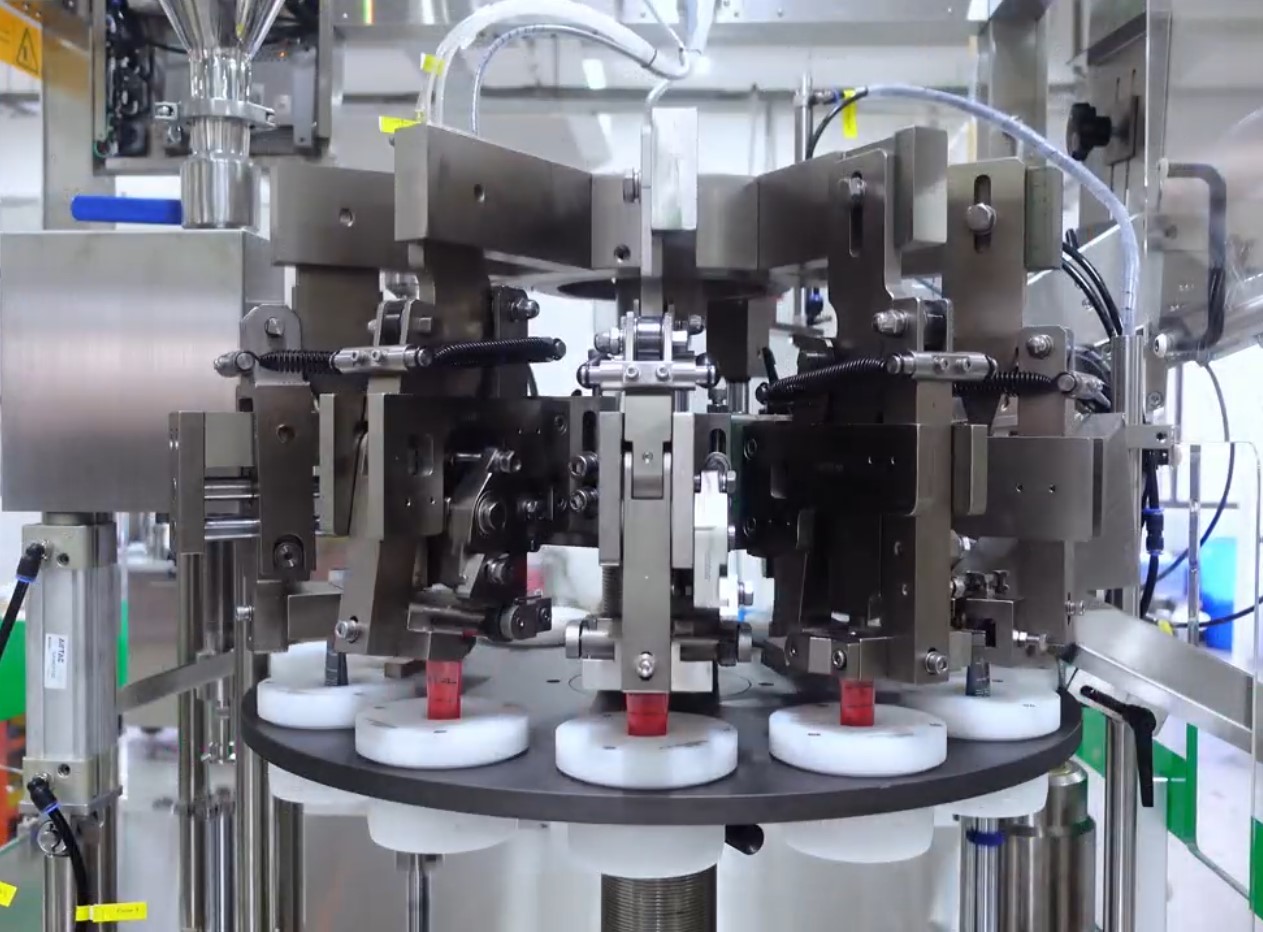

- Crimping: Saddle Fold with dual-sided code
- Touch Screen PLC
- Preset tube sealing settings
- Automatic Cassette Tube Feeding
- Automatic Tube Discharge
- Automatic Tube Orientation

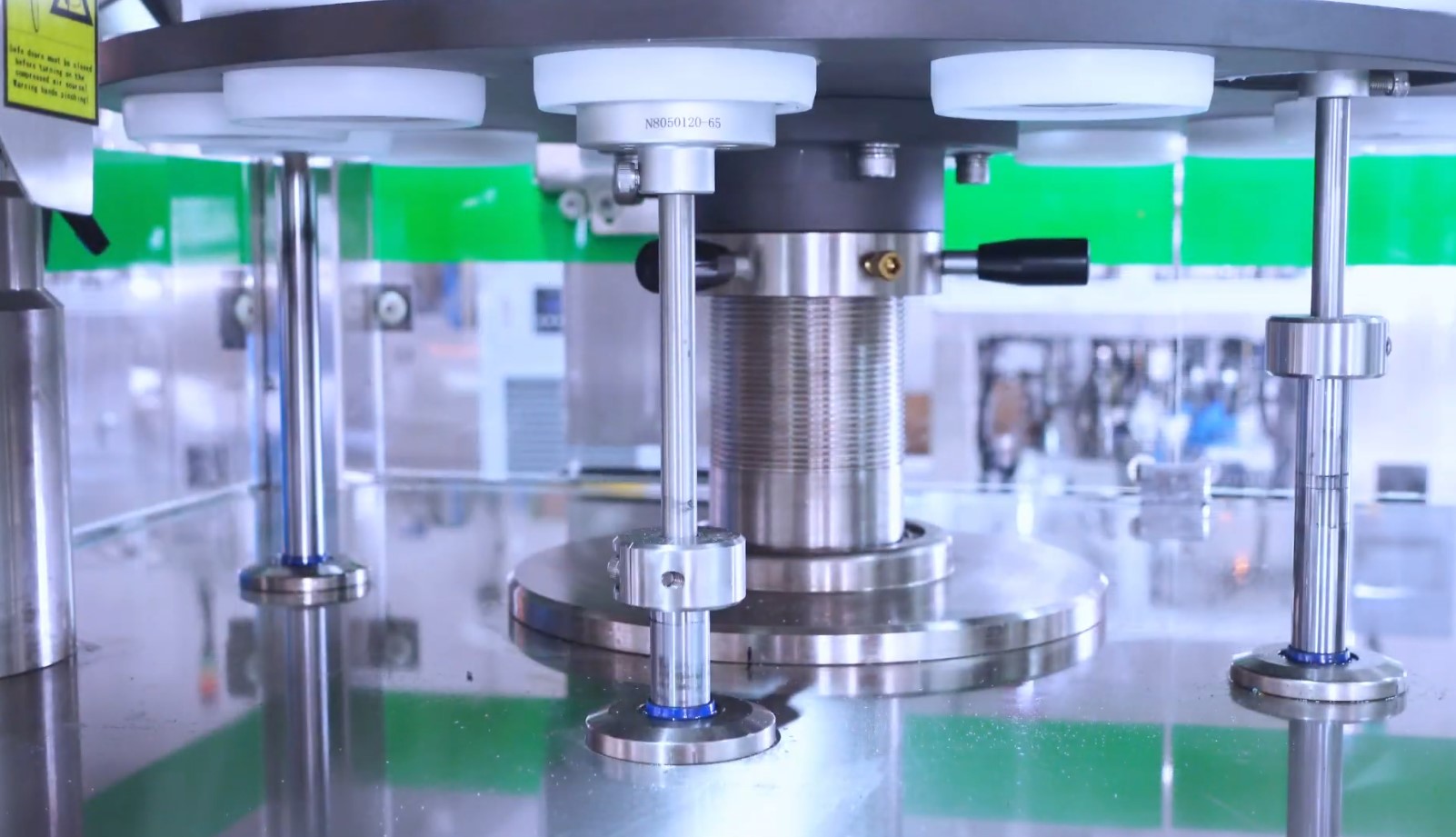

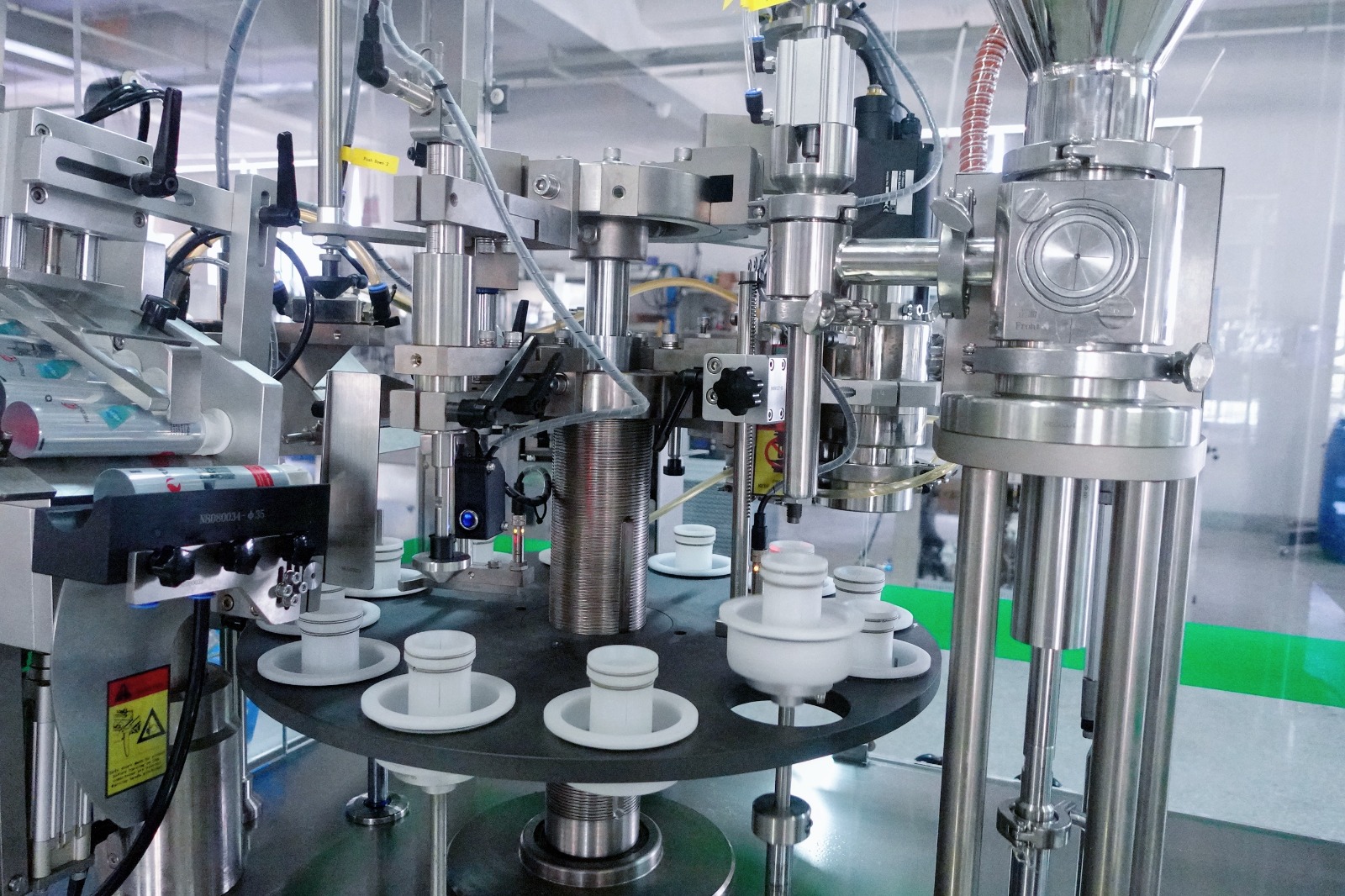

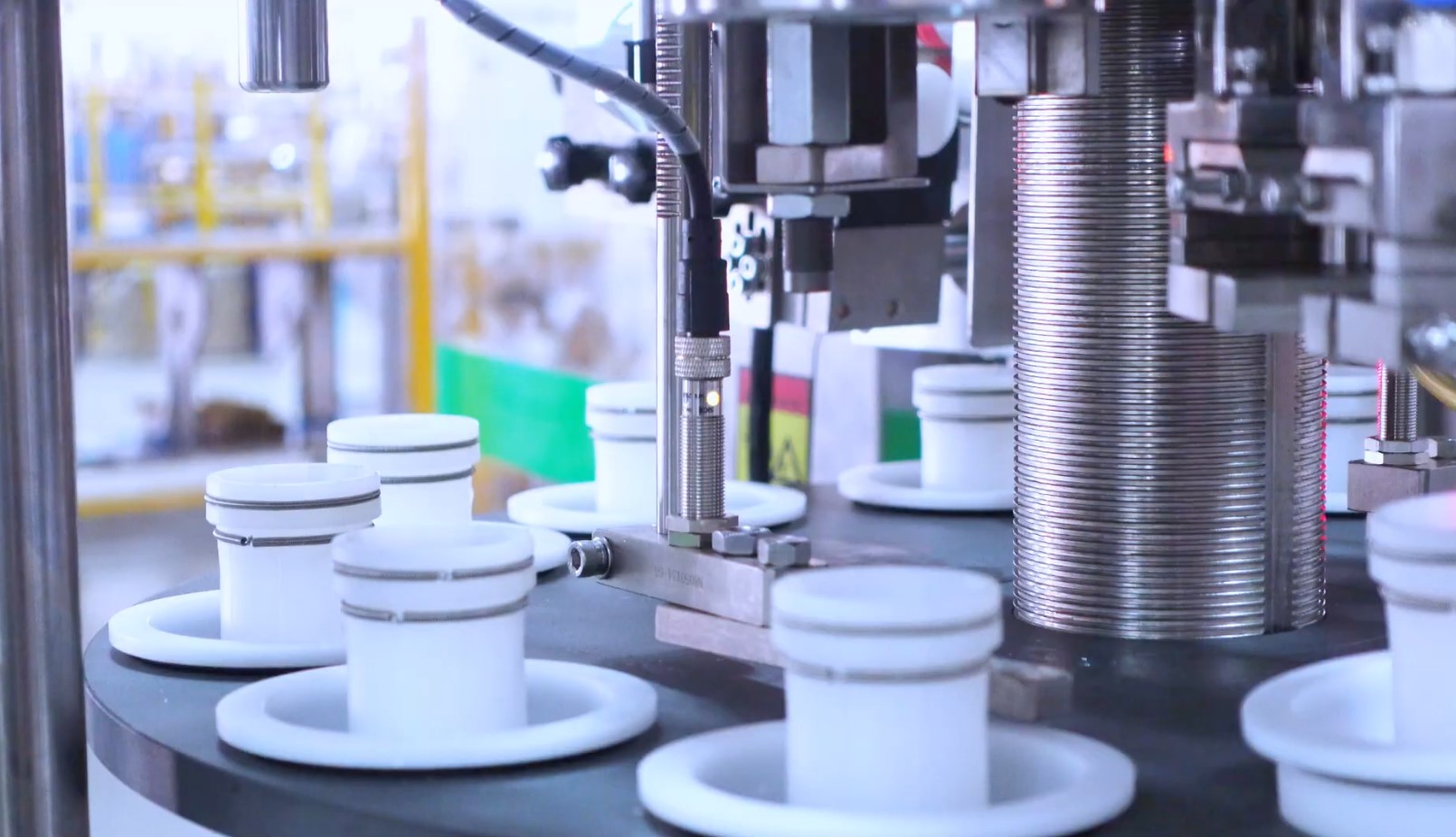

- 12 Station Rotary Indexing
- Bottom-up Filling
- Filling Nozzle with cut-off and air blow
- No Tube No Fill safety
- Rapid Change Over, easy cleaning
- Rapid Delivery size parts tooling
- 316L Stainless Steel Contact Parts
Tube Filler Specifications:
- Tube Diameter: 10mm – 50mm
- Tube Length: 210mm (max tube O.A.L.)
- Filling Volume: 5 – 250ml
- Filling Accuracy: +/- 1%
- Hopper Volume: 40 Liter
- Main Motor 1.5 HP (1.5kw)
- Electrical: 220V, 3 Phase, 20A, 60Hz
- Electrical Requirements: 7kw
- Air Pressure: 87-116 PSI (0.6-0.8 Mpa)
- Air Volume: 238 gallons/min (900 L/min)
- Chilled Water Temperature: (15-20°C)
- Max Hot Air Temperature: (600°C)

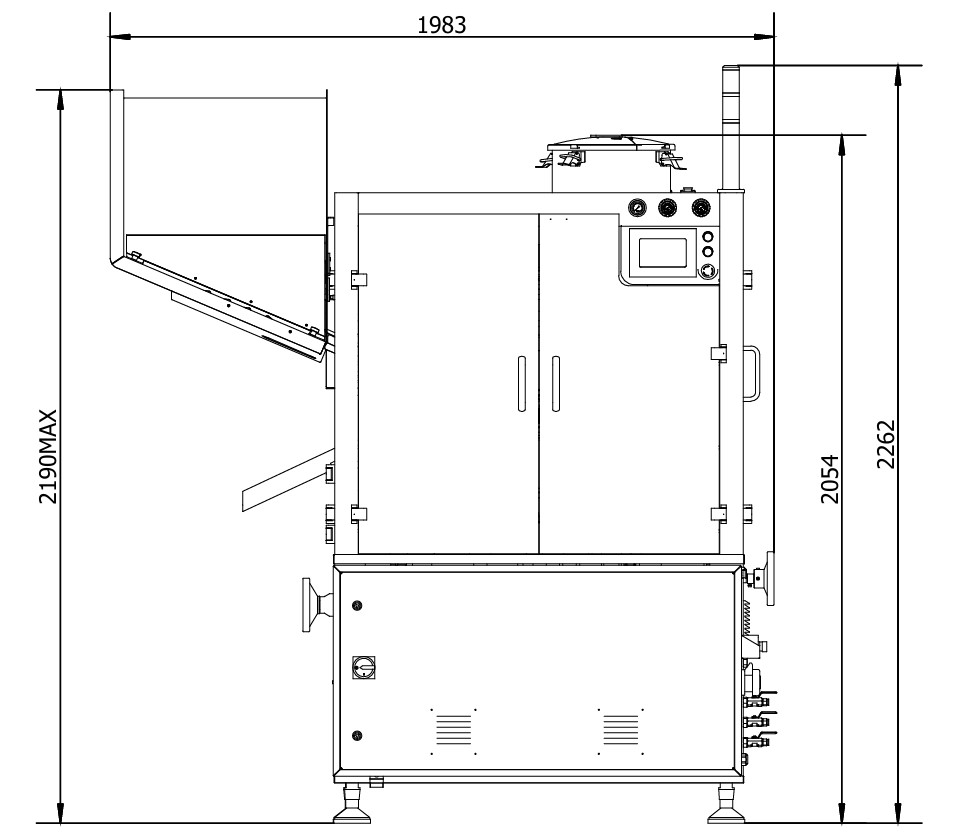

- Dimensions: 79” wide x 47” deep x 86” tall
- Weight: 2,646 lbs (1,200 kgs)
Top Quality Components:
- PLC: Mitsubishi (from Japan)
- Touch Screen LCD: Velen (from Taiwan)
- Variable Frequency Drive: Mitsubishi (from Japan)
- Orientation Sensor: Panasonic (from Japan)
- Power Switch: Schneider (from France)
- Solid State Relay: Omron (from Japan)
- Proximity Switch: Sick (from Germany)
- Emergency Stop: Schneider (from France)
- Power LED: Schneider (from France)
- CAM Switch: Moullar (from Germany)
- Pneumatic Cylinders: SMC (from Japan)
- 316L Stainless Steel contact parts
